Collision Proof (CoPr) Pilings

Stop costly re-installation of high-risk navigation,
fender, & mooring pilings.

* Installs Normally - drive, jet, or gravity base.
* Any Material, Any Size - wood, steel, PVC, Al, recycled plastic . . . 1" to 3 ft +
* Supports Typical Payloads - marks, lights, batteries, platforms, equipment ...
* Rigid In Operation - Immobile under normal wind, wave, current loads. Not a "floppy" spar.

* Deflects On Impact - by vessels, ice, debris.
* Damage-proof Design - Joint bends before pile breaks; deflects > 90 o without damage.
* Tuneable Stiffness - Selectable bending load; can be set to minimize vessel damage.
* Immediately Returns Upright
* Fail-safe Design - Internal spring controls response, buoyancy assures recovery.
* Reliable - Unique captive compression spring cannot break or corrode.
* Custom Designs, Materials Available
* Guaranteed Up to 30 Years
- depending upon materials specified; call for details.

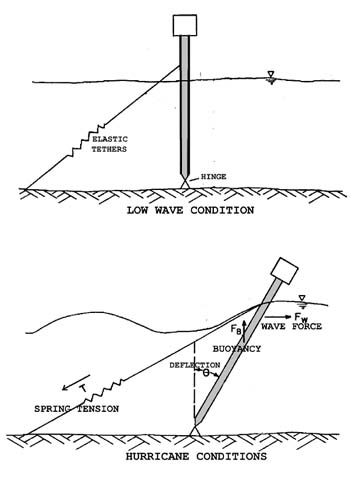

Collision Proof (CoPr) Piling Diagram

Another responsible product from

Emerald Ocean Engineering

107 Ariola Dr,
Pensacola Beach, FL 32561
(850) 932-9111
